Corrosion Cells and Factors Causing Corrosion

Module Seven of CCE 281 Corrosion: Impact, Principles, and Practical Solutions

Lesson Objectives

• Compare the mechanisms that can initiate and propagate a corrosion process
• Identify the factors causing a corrosion situation
• Discuss the importance of the information associated with and surrounding a corrosion failure
• Predict the presence of corrosion cells
• Plan corrosion experiments to reveal corrosion cells
• Compare the impact of different factors on corrosion damage

Required Reading

This Module consists of fourteen Web pages of required reading. The pagination is visible at the bottom of each page with direct links to adjacent pages.

Additional information can be found in sections 7.1 to 7.6 of the reference textbook (Corrosion Engineering: Principles and Practice).

Introduction

As described in the previous Chapter, corrosion damage may take various forms which are themselves triggered by apparently different compounding factors. The initiation and progression of corrosion processes indeed depend on the complex interaction of a multitude of factors such as:

• Nature of the metal or alloy
• Presence of inclusions or other foreign matter at the surface
• Homogeneity of the metallic structure
• Nature of the corrosive environment
• Incidental environmental factors such as variations in the presence of dissolved oxygen, of temperature, and in the velocity of movement either of the environment or of the system itself
• Other factors such as stress (residual or applied, steady or cyclic)
• Oxide scales (continuous or broken)
• Presence of deposits on surfaces
• Fayed surfaces and the possibility of corrosion crevices
• Galvanic effects between dissimilar metals
• Occasional presence of stray electrical currents from external sources

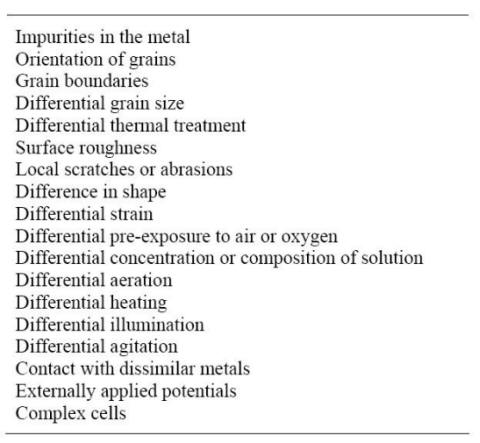

The nature of the driving forces behind these factors has been the subject of scientific studies by many scientists in the early part of the twentieth century. In a landmark paper, Mears and Brown have summarized 18 mechanisms, listed in the following Table, by which differences in potential may develop on metal surfaces [1].

Causes of corrosion currents

There is a vast body of information relating practically all the previously listed factors to actual field observations and subsequent analysis of failed components. These failure investigations are typically carried out in a detailed mechanistic ‘bottom-up’ manner whereby a failed component would be sent to the laboratory where analytical techniques would then be used following well established protocols. Chemical analysis, hardness testing, metallography, optical and electron microscopy, fractography, X-ray diffraction and surface analysis are specialized tools used in such investigations.

However, this approach alone provides little or no insight into the real causes of failure. Underlying causes of serious corrosion damage that can often be cited include human factors such as lack of corrosion awareness, inadequate training and poor communication. Further underlying causes may include weak maintenance management systems, insufficient repairs due to short term profit motives, a poor organizational ‘safety culture’, defective supplier's products, or an incorrect material selection.

It is thus apparent that there can be multiple causes associated with a single corrosion mechanism. Clearly, a comprehensive failure investigation providing information on the root cause of failure is much more valuable than one merely establishing the corrosion mechanism(s).Establishing the real causes of corrosion failures (often related to human behavior) is a much harder task than merely identifying the failure mechanisms.

In contrast to the traditional scientific mechanistic approach, systems engineers prefer the ‘top-down’ approach that broadens the definition of the system and is more likely to include causes of corrosion failures such as human behavior.This is consistent with the lessons to be learned from the UK Hoar Report which stated that corrosion control of even small components could result in major cost savings because of the effect on systems rather than just the components [2].
